Reworking my homelab with Talos

  • Post by Rob Kenis
  • Jan 15, 2024
post-thumb

I’ve been self-hosting and tinkering around with servers for a couple of years.

My homelab through the years

A couple years ago, I deployed my first Pi-Hole on a Raspberry Pi. I was amazed by the possibilities of self-hosting and got dragged into the rabbit hole sooner than I like to admit.

Through the years, I’ve been looking for ways to make my setup at home more reliable and easier to maintain. My first step was to containerize everything. So instead of manually installing Pi-Hole, I manually started a Docker container.

I had some idea of where I wanted to go, but with my background in software development, I was not familiar with infrastructure as code. There were too many tools to choose from, so I went with something I knew: Ansible.

As I got more familiar with containers, I started to look into ways to minimize management, I needed my infrastructure to update itself. I started to look into Kubernetes, and I found a lightweight Kubernetes distribution called k3s. It was easy to set up, and it was lightweight enough to run on my Raspberry Pi’s. This change didn’t particularly make my setup more reliable, but it did make it easier to manage. I could now deploy and update application using Argo CD so I no longer needed to interact with the server itself, everything was stored in Git.

This setup worked well for a couple of years. But was it good enough? This is the question I’m always asking myself regarding my homelab. Without a handful of meetings and the burden of story points, it’s actually quite fun to improve on my setup. The one thing I wanted to improve was the overhead of the OS. I was really only working with kubernetes, so why did I need a full-blown OS?

Enter Talos

I’ve been attending some Kubernetes conferences and meetups, and I’ve been hearing a lot about Talos. Talos is a modern operating system for Kubernetes. It easy enough to set up, but most important for me, it manages everything through code.

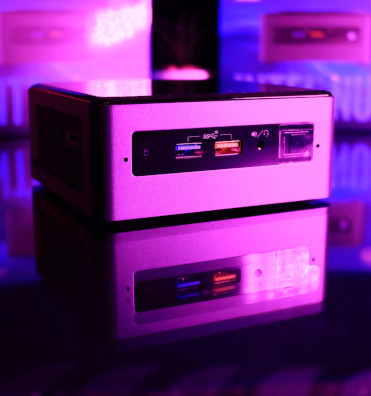

While looking into ways to improve on my setup, I also got my hands on an Intel NUC. I was getting tired of SD cards and loud, small fans, so this was the ideal timing to improve on my hardware situation as well. I decided to go with Proxmox as my hypervisor. I’ve had my eyes on virtual machines for a while now, but ARM was not really supported. With Proxmox, I was hoping to finally saying goodbye to the tedious process of flashing SD cards and thumb drives.

Booting my first Talos node

After loading the Talos ISO into Proxmox and booting a virtual machine, the hardest part was done. Kudos to the Talos team for understandable documentation.

The node starts in no time, but is not ready to be used. So I generated my first machine config and assigned the first VM as a control plane node. I am not really planning on extending the cluster with smaller nodes, but if I wanted to, I can start more nodes and apply worker node configs to them.

# This bootstraps the control plane node
talosctl gen config talos-proxmox-cluster https://$CONTROL_PLANE_IP:6443 --output-dir _out
talosctl apply-config --insecure --nodes $CONTROL_PLANE_IP --file _out/controlplane.yaml

# This sets credentials
export TALOSCONFIG="_out/talosconfig"
talosctl config endpoint $CONTROL_PLANE_IP
talosctl config node $CONTROL_PLANE_IP

# This bootstraps etcd
talosctl bootstrap

I liked k3s with their setup scripts and joins tokens, but this feels even simpler.

Migrating my applications

Good thing I’ve been using Argo CD to manage my applications. Migration was as simple as installing ArgoCD using Helm, and applying a manifests that syncs the cluster with my Git repo.

Small remark on data migration: I’ve used hostPath the last years and I’ve moved over to TrueNAS, so storage is outside Kubernetes and I intend to keep it that way.

I use following manifest to guarantee that ArgoCD is always in sync with Git using the App of Apps approach.

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  namespace: argocd
  name: sync
spec:
  destination:
    namespace: argocd
    server: 'https://kubernetes.default.svc'
  source:
    path: kubernetes/argocd/clusters/talos
    repoURL: 'git@my-argocd-repo'
    targetRevision: main
  project: default
  syncPolicy:
    automated:
      prune: true
      selfHeal: true
      allowEmpty: false

What did I learn?

  • Talos is easy to set up and manage
  • When exploring a new OS, replacing a VM is way easier than starting over with a USB drive. The Proxmox overhead is not noticeable, so this can was worth it.
  • I finally got Metallb working properly, so if I ever want to scale out my nodes, I can.
